At this time, no. As we transition further into the features our new website offers, we will offer this in the future.
While we value our partnership with Tim at TTWT and appreciate the marketing he does for us, Tim understands this and therefore does not mention these codes when speaking directly about our products.
As a small company with limited staff, we process one order at a time in the order in which it is received, having to keep track multiple back orders or pre-orders becomes unmanageable for us, and we would ultimately forget something, that is obviously not good customer service.
In addition to that, lets say a customer orders four items, one of which was out of stock, most would expect us to ship the three items we have immediately, that would require us to have to pay the shipping to send the fourth item when it comes in. As we all know shipping is not “free”, someone pays for it somewhere.
For these reasons we remove out of stock items from the website, IF we know the estimated date we will have it back in stock, we will state it in the items description. We appreciate your understanding.
A #1: Some heavy duty buckets have a double wall construction on the top, and bolting hooks to them could damage the bucket by compressing the wall’s together, and you would not be able to properly torque the bolts. If you have this type of bucket construction, then these hooks may not be the best option and you should consider having the hooks welded on.
In summery, KBOGH/BoltOnHooks LLC does not recommend or endorse the use of the bolt on products for these heavy duty, double walled style buckets.
A #2: One customer, Bob from IN recently did an install on his 3320/300cx/HD Bucket with custom made spacers. You can read the details here on the GreenTractorTalk forum. Bob knew the potential issues and assumed all responsibly in this application. We cannot offer this solution due to the difference’s in the buckets.
A #1: No. Our products are only available through the www.boltonhooks.com website. Any “Bolt-On” hooks you see on Amazon or eBay are cheap (and imported from CHINA) copies of our products. The ones we have seen also came with cheaper Grade 5 hardware, and showed signs of very poor weld quality. They are also physically larger than ours, and have not been proof tested. These inferior parts are not compatible with ours.
A #2: Some exclusive brick and mortar tractor dealers do sell our genuine products. This is a very small list and they are always packaged with our name on the instructions.
Yes we offer them for sale, but please read this before spending your money: The two large USS grade #8 washers and the two small SAE grade #8 washers can and will provide the needed support for these hooks if they are used as intended on SCUT’s (sub-compact utility tractors) and CUT’s (compact utility tractors). When in use, the bolts are in a “shear” situation, and a backing plate will not provide any more strength in that direction. Remember that the hooks are designed to pull in one direction, and that is against the material of the bucket and not up and away from the bucket.
One more thing to consider is that the top of most buckets is only made of thin 1/8”, 10 gauge, or 3/16” mild steel, so even if you had plates and over-stressed the hooks by yanking on them-you will still bend the bucket ahead of the plates and behind them. Common sense must prevail also so as not to damage your equipment.

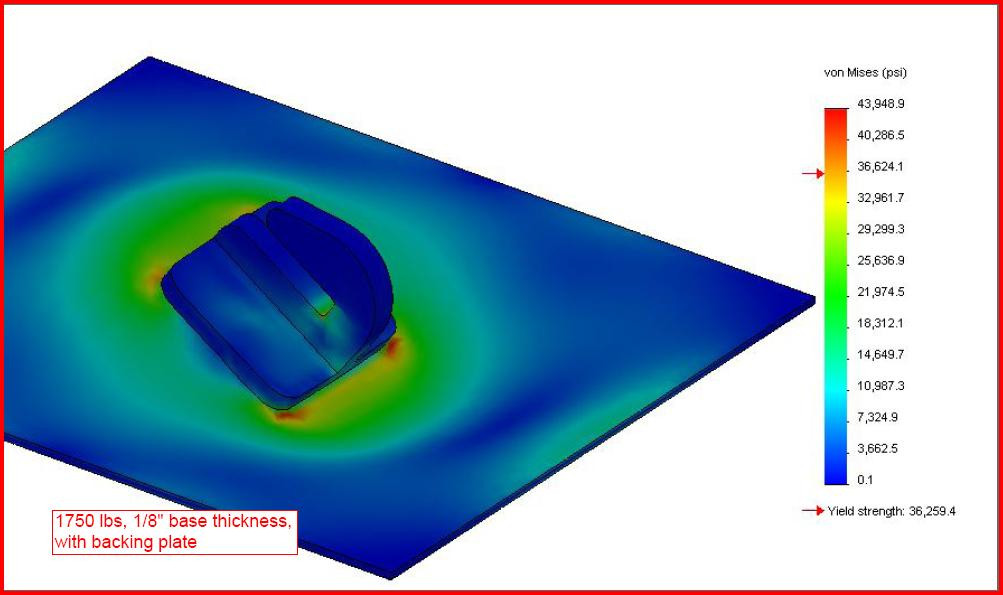

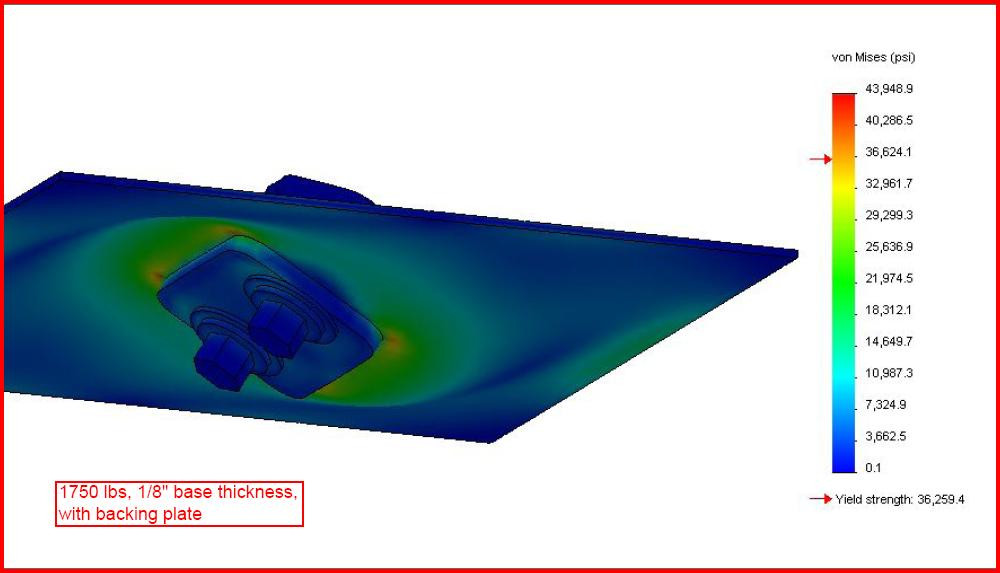

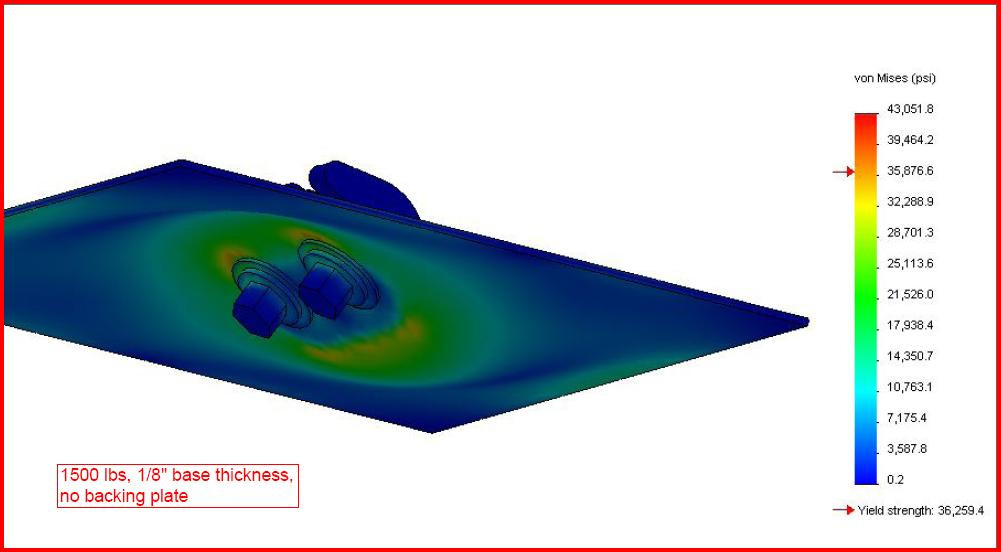

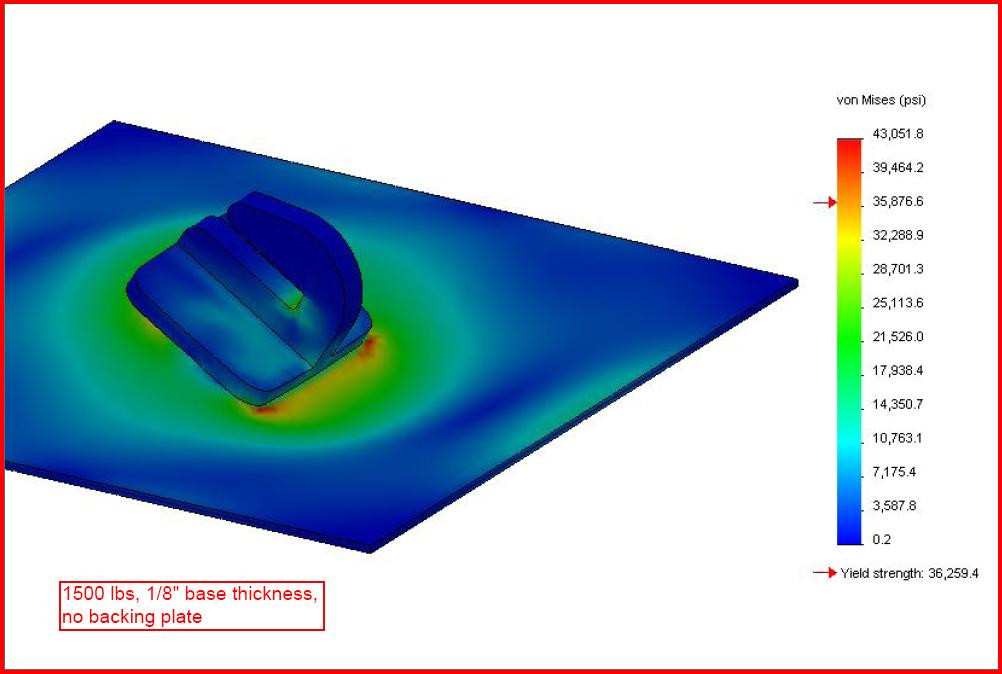

Here are some Stress Analysis Models, as you can see-you only gain 250 lbs (17%) increase with the plates:
No. These hooks can be used on a variety of equipment, so no matter what color we offered-there would be someone who wanted something else, so the decision was made to have them plated and leave the final color choice to the customer if they choose to paint them at all. It also helps keeps the cost down not having to stock different finish options.
Note: All of the pictures on the website showing painted hooks are customer provided.
You can scuff them, clean with a solvent, prime and then paint them…But most customers are not bothering anymore since the hooks are plated now. The paint will just chip off when they are used anyway, and the plating is tougher than any paint or powder coating would ever be. All of the pictures on the website showing painted hooks are customer provided.
Here is something to think about: What other “hardware” on the tractor is painted?
Money saving tip: If you plan to paint your hooks, buy the Blems from the Outlet Store Page.

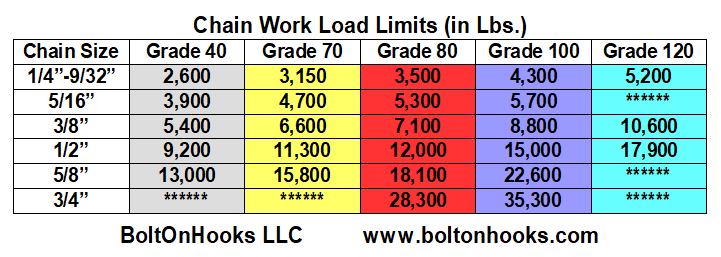

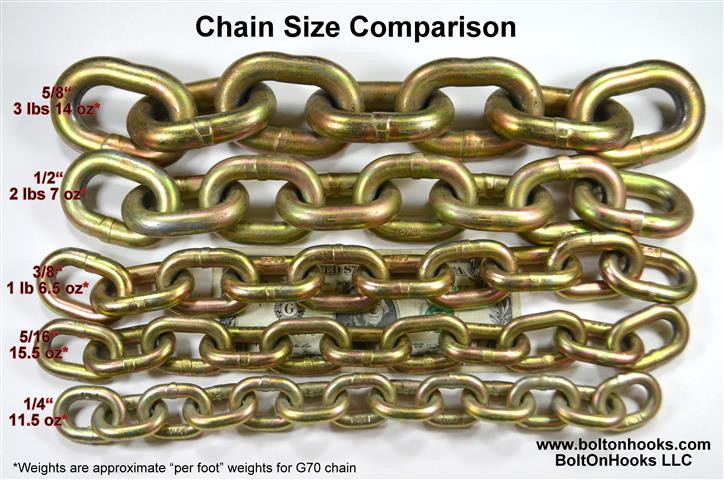

The most commonly used chain is called “G70” or “Transport” chain, it is gold in color and used for most everything but overhead lifting. Plain steel chain is usually G40. See chart below:
No we don’t have a large slip hook option. The reason is no company forges the proper hook, made for welding that we could use like the grab hooks. Any company that has one like that is using a regular zinc plated slip hook and cutting the clevis or ring off, then grinding the plating off so they can weld them-this is all something we refuse to do.

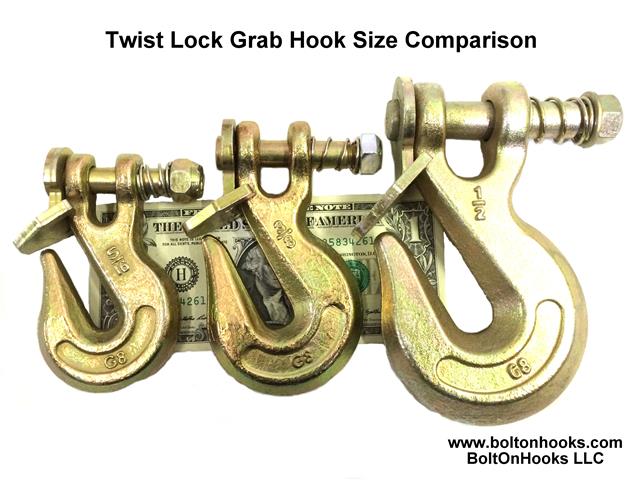

We make our RingSling straps specifically to use with the grab hooks, and also sell the rings alone so you could add them to your own ropes and slings, please check out the Rigging and Accessories page on the website. We also have special “Twist Lock” slip hooks to use on your chain.
There are several reasons we do not offer them in this size, here are a few:
In most cases, yes it fits just fine-but obviously at the reduced load capacity (4,700lbs) of the smaller hooks.
A #1: The Hooks, Clevis Mounts, and Backing Plates measure nominally 2-5/8” x 3-3/8” and are 1/4” thick. The holes are .505″ in diameter, and the spacing is 2-1/8” on center.
A #2: The 2×2 Bolt-On Receiver Hitch plate measures 6-1/2″ x 3-1/2″ and is 1/4″ thick. The holes are .505″ in diameter and the spacing is 2-1/8″ on center front-to rear, and 4-1/2″ on center side-to-side.
Updated 1/26/20 (after a USPS rate increase):
A #1 For Canada:
Yes, shipping charges of $48.95 USD are automatically added in the shopping cart for ALL Canadian orders, this is the fee the USPS charges for a Medium Flat-Rate box up to 20 pounds*. Order 1 hook or 6, the fee will be $48.95 USD, sorry to our brothers to the North but this is out of our control.
* If the order exceeds 20 pounds, additional shipping charges will apply. If in doubt, please email a list of items you’d like to order and we will verify the weights.
For small parts that may fit into a Small Flat-Rate box (4 pounds Maximum) the charge will be $24.65usd. We will refund the difference when printing the shipping label.
In some rare cases, for very light items (under 2 pounds) like a diff lock pedal, seat springs, or some hydraulic parts we can use the USPS 1st Class International Service for about $22.00usd. Please email for an estimate.
These fees are due the weight of the products, and these are the fees the USPS charges-we DO NOT profit from shipping charges! We used to offer reduced rates for small orders under 4lbs, but the recent rate increase of up to 28.2% from the USPS in 2016 made this not cost effective anymore.
A #2 For other countries:
Please contact us ([email protected]) directly and I will send a PayPal invoice including the extra charges. Please DO NOT use the “Add to Cart” buttons on the ordering pages.
Yes, we will ship to most countries using USPS Medium Flat-Rate box’s, the current charge for this service is $63.95usd to $78.95usd for up to 20 pounds of product, please email for a quote. We charge what the USPS charges only-no mark up whatsoever.
In some rare cases, for very light items (under 2 pounds) like a diff lock pedal, seat springs, or some hydraulic parts we can use the USPS 1st Class International Service for about $20.00usd. Please email for an estimate.
Please DO NOT use the “Add to Cart” buttons on the ordering pages.
Updated 1/29/17
All orders are shipped Priority Mail via the USPS (United States Postal Service). Please email me if other services are required. Local pickup is also available in the Westminster, Maryland 21158 area. Please check your email (including spam folder) for tracking info 24 hours after ordering.
A $13.50 fee is automatically added to every order for shipping expenses (US Orders only).
A: New/Unused items may be returned for a full refund within 30 days of receipt, minus the $13.50 shipping fee ($7.65 if we used a Small Flat Rate Box). 31-60 days we will offer a store credit. No returns/refunds after 60 days. Please email for specific return information.
If you have installed, painted, or otherwise altered the product from New/Unused condition please contact us before sending the items back.
In addition, KBOGH/BoltOnHooks LLC will not be responsible for any fees assessed to reship an order if the wrong shipping information is provided at the time of purchase.
No, if we can fit your order into a USPS Small Flat Rate box, We will refund $5.50 through PayPal.
Yes, we will accept personal and business checks as well as money orders for payment. Please email us for more details.
No, we do not. We only accept all major credit cards and PayPal for electronic payments.
