Hydraulic Parts

KBOH/BoltOnHooks LLC is now offering a limited selection of hydraulic products like pressure test gauges, quick disconnect couplings, protective caps, sleeving products, and now a custom Diverter Valve kit and Crossover Relief Valve. Please check back frequently as we are trying to expand this product line as time and demand allows, also feel free to contact us for any products or machines you don’t see listed below.

What Coupler/Tool do I need?

In addition to the tables below, you can download these files and print them to compare to the couplers you have. Tool and coupler sizes are NOT actual measurements of the outside of coupler itself, it refers to the “Body Size” of the coupler.

For the Mid and/or Rear SCV(Remote) connections on the following machines:

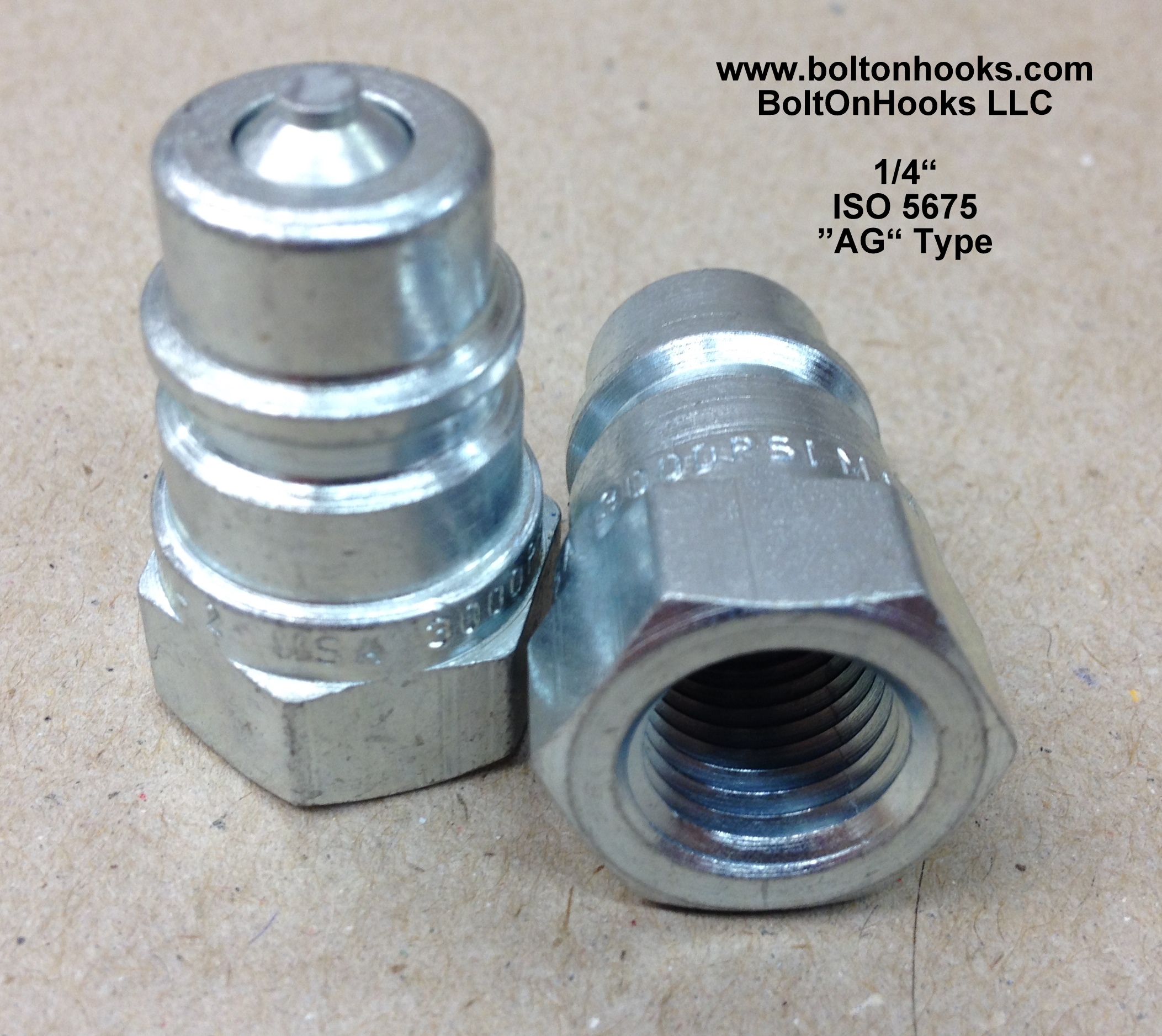

1/4″
ISO 5675
“AG” Type
JD 1023E JD 2305 JD 2720 JD 4100 JD 425
JD 1025/6R JD 2320 JD 2025R JD 4110 JD 445
JD 2210 JD 2520 JD 2032R JD 4115 JD 455
JD 3025E JD2038R MF GC1705
(pre 8/2017)
All JD
X-Series
1/2″
ISO 5675
“AG” Type
JD 3×20 JD 4×00# JD 3032/38E* JD 4044/52/66M*
JD 4×20 JD 3033/39/46R* JD 4044/52/66R*
JD 4×10
3/8″
ISO 5675
“AG” Type
MF GC1705
(post 8/2017)
MF GC1723
MF GC1710* MF GC1725
MF GC1720*
3/8″
ISO 7241
“B” Type
JD 790*# JD 4×00# KUB L2501 (F) KUB L3600 (F)
JD 990# KUB L3301 (F) KUB L3800 (F)
KUB L3901 (F)
3/8″
ISO 7241
“A” Type
KIO CK25 KIO NX5510 NH TC40DA KUB L4701 LS 2025H (F) BRSN 4520 (F)
KIO CK27 (F) KIO LK3054 MF 1526
KIO CK35 KIO CX2510

Please email us if you need the 3/8″ 7241 “A” style couplers for a gauge setup, we do have them.
(F) Means Female Coupler Required on Gauge (contact us if needed, we’ll build it for you)

For the Power Beyond connections on the following machines:

1/2″
ISO 5675
“AG” Type
JD 1023E JD 2305* JD 3×20 JD 790*#
JD 1025/6R JD 2025R(GEN2) JD 4×20 JD 990*#
JD 2210* JD 2032R(GEN2) JD 4×10* JD 2038R
3/8″
ISO 7241
“B” Type
JD 2320 JD 2025R(GEN1) JD 4100
JD 2520 JD 2032R(GEN1) JD 4110
JD 2720 JD 4115

*=Not Verified Yet, Please Verify/Email Us
#=Depends on Serial Number, Please Verify/Email Us

**All information above is provided to the best of our ability to verify information.**

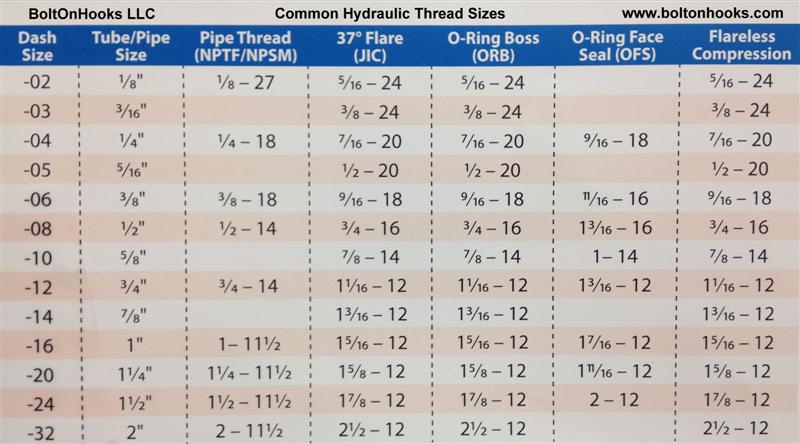

Common Thread Sizes

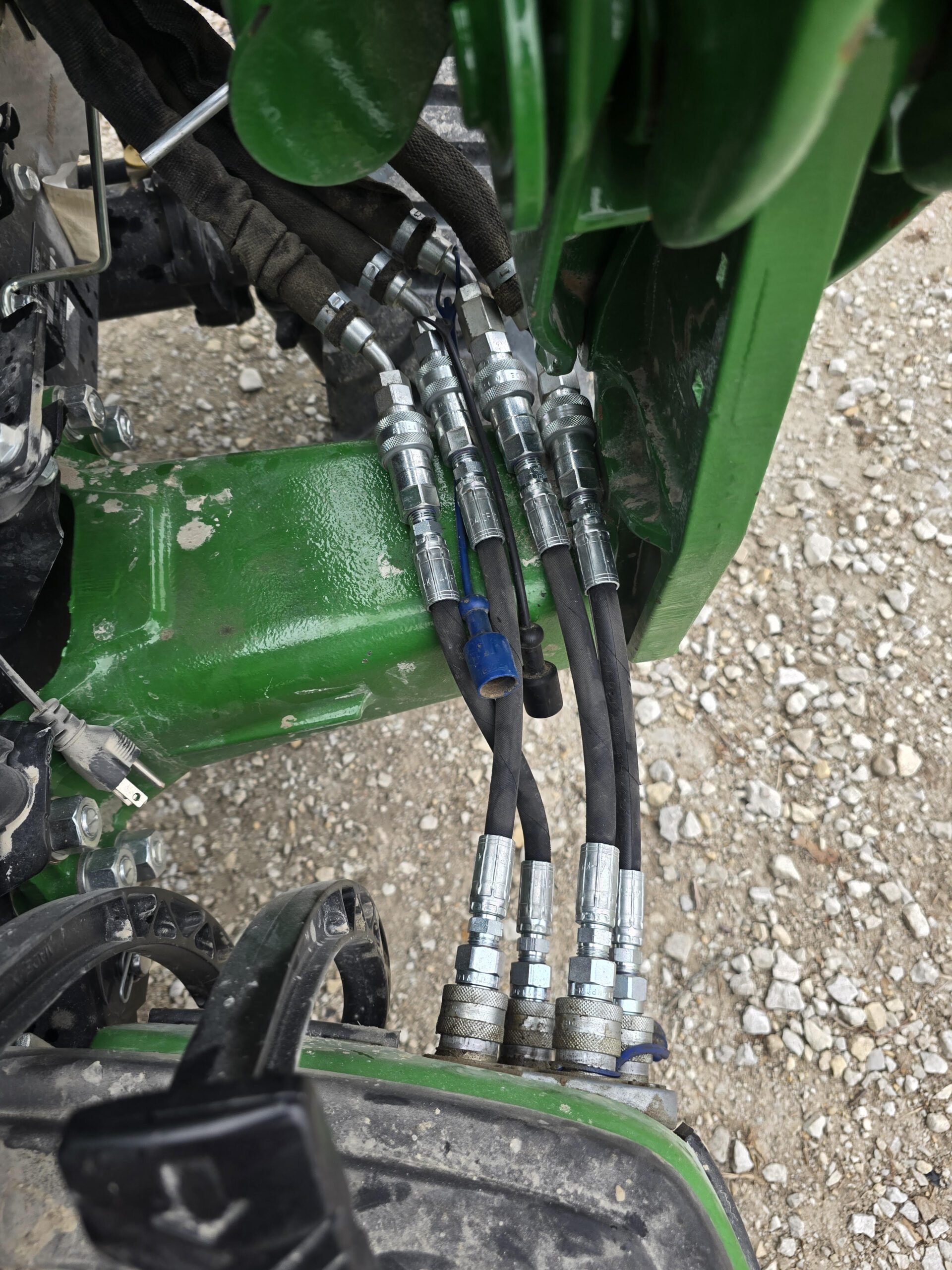

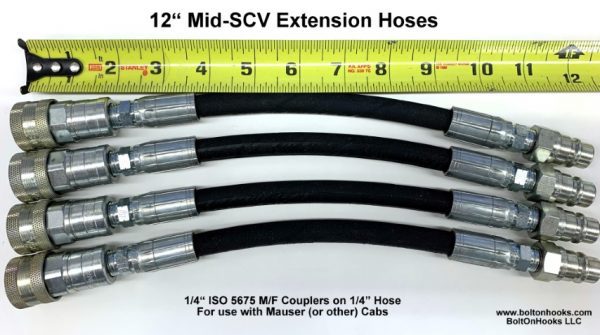

12″ SCV Extension Hoses

12″ extension hoses for 1 or 2 -Series John Deere tractors with Mauser (or other) cabs installed. Allows easier loader / blade / blower hose hookups. Set of 4 (four) complete with 1/4″ ISO 5675 “AG” style Male / Female couplers on 1/4″ hoses.

Built to order, may take extra time to ship.

$135.00

SKU: 1S-Hoses

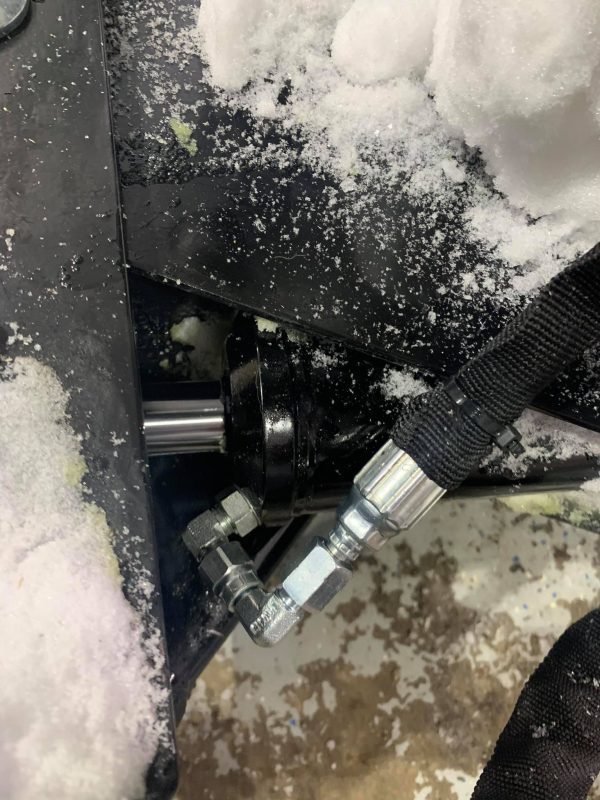

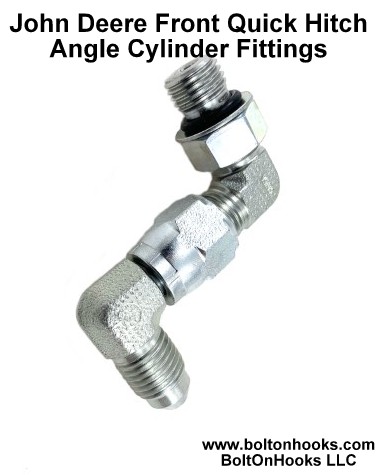

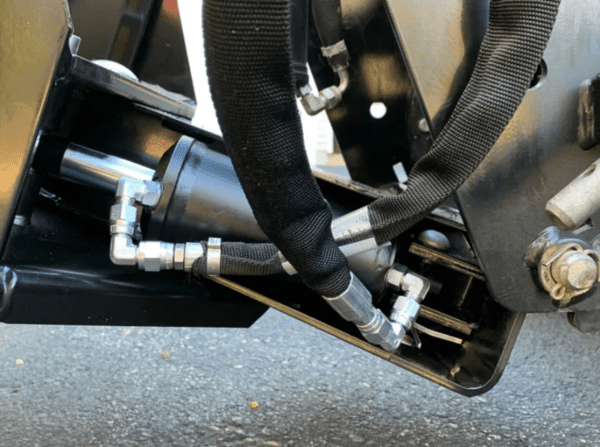

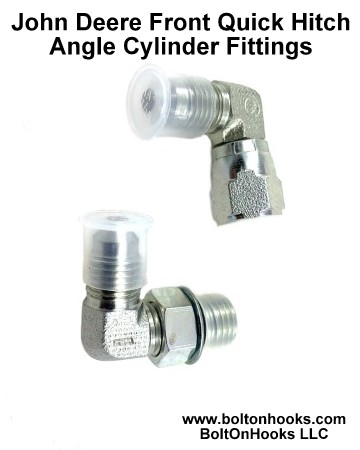

JD QH Front Angle Cylinder Fittings

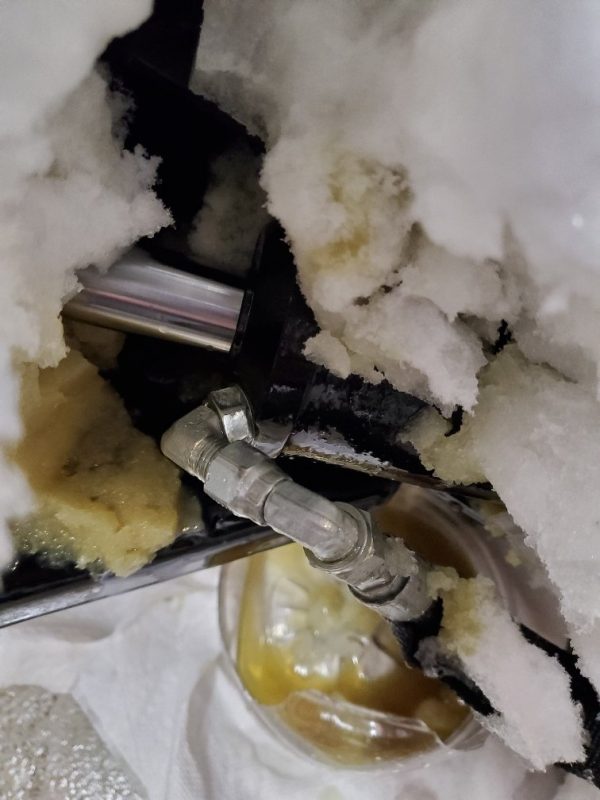

Replacement fittings for the John Deere front Quick Hitch angle cylinder that are commonly damaged by snow / ice buildup in the frame of the hitch.  Always keep a spare set of these on hand for your 54″ plow! These style fittings require no threads tapes or sealants.

Includes one each:
1/4″ JIC Male x 1/4″ JIC Female Swivel 90°
1/4″ JIC Male x #4 SAE/ORB Male 90°

$8.00

SKU: JDQH Fittings

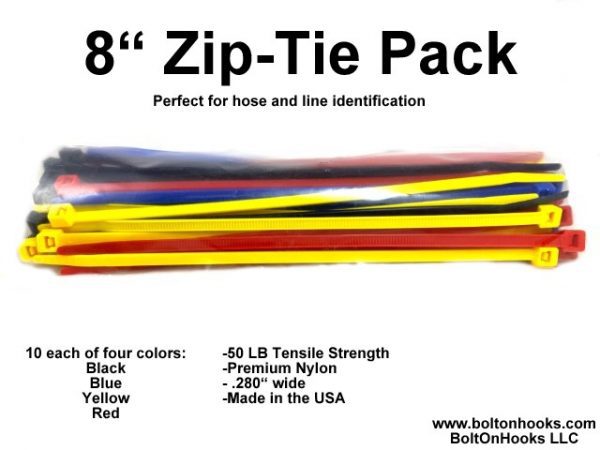

8″ Zip Tie Pack

10 each of 4 colors:
Black
Blue
Yellow
Red

8″ x .180″ * Premium Nylon * 50lb tensile strength * Made in the USA

$5.00

SKU: TiePack

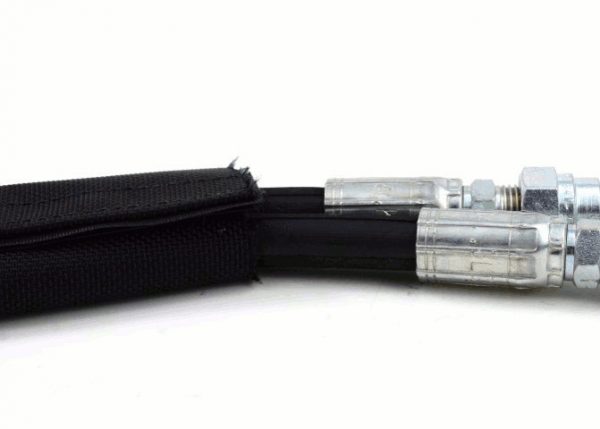

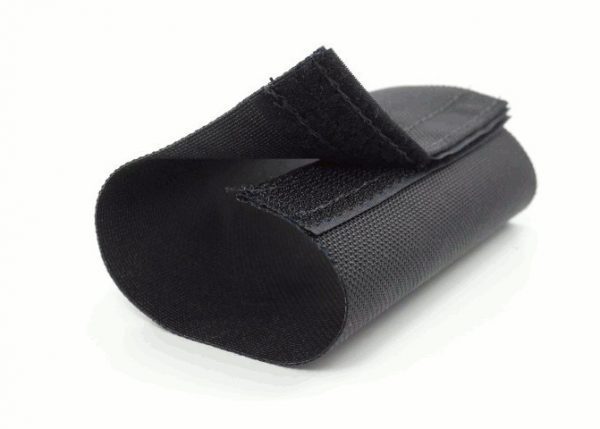

Dura-Wrap© Sleeving

Dura-Wrap© Sleeving

For Bundling and Protecting Hoses

Sold by the foot, change the quantity before adding to the cart.

Black Only

$4.50$5.50

SKU: DWRAP
  • 1-1/4″ is perfect for two 1/4″ or 3/8″ hoses, or 5/16″ – 3/8″ chain
  • 2″ is perfect for four-six 1/4″ hoses, or four 3/8″ hoses
  • 2-1/2″ is perfect for two 3/4″ hoses

Dura-Wrap© is the perfect solution for organizing and controlling cables and hoses that are subject to constant exposure. This sleeving is made from one of the strongest materials known, ballistic nylon. The tightly woven nylon is paired with an industrial hook and loop closure to provide a durable and flexible sleeving that’s super easy to install.

Dura-Wrap© is ideal for keeping wires or hoses together or covering chains and hoses to protect the surfaces they run across. The sleeve provides the best abrasion resistance and water repellence when compared to other nylon sleevings.

The flexibility featured by Dura-Wrap© makes it easy to install over single or multiple hoses without having to disconnect them. The high strength and durability also help to protect operators or other personnel safe from high-pressure fluids that may be traveling in the hoses.

  • Tightly Woven Ballistic Nylon Construction
  • Heavy Duty, Oversize Hook and Loop Closure
  • Repels Liquids
  • Resists and Prevents Damage from UV, Abrasion, Gasoline/Diesel Fuel, Mild Chemicals, Salt Water
  • Deflects High Pressure Ruptures
  • Quantity (150′ or more) Discounts Available
  • Other Popular Sizes Coming Soon

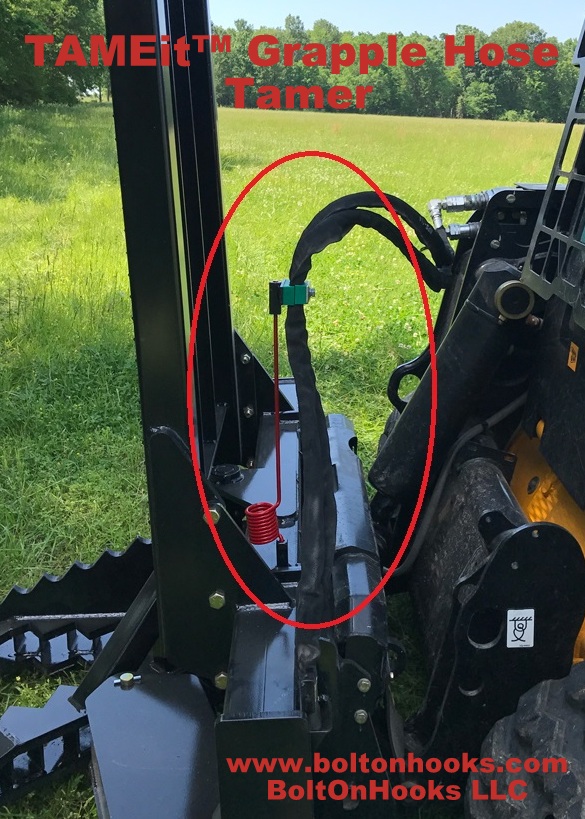

TAMEit™ Grapple Hose Tamer

Protect Your Hoses From The Pinch!

  • 20-1/2″ Tall
  • Bolts or Welds On
  • Use with 1/4″ or 3/8″ Hoses

Protect your hydraulic hoses with the TAMEit™! The TAMEit™ will lift up the hoses to clear any pinch points and will flex to allow full movement of the hoses without overstretching them.

Looking for Hydraulic Valves?
