1/4″ NPT Threads
Faster® NV Series
Made in Italy by Faster®
**Does not replace OEM couplers**
KBOH/BoltOnHooks LLC is now offering a limited selection of common quick disconnect couplings uses on various tractors and machines
Hydraulic Quick Couplers
What Coupler/Tool do I need?
In addition to the tables below, you can download these files and print them to compare to the couplers you have. Tool and coupler sizes are NOT actual measurements of the outside of coupler itself, it refers to the “Body Size” or internal passages of the coupler.
For the Mid and/or Rear SCV(Remote) connections on the following machines:
**Will not connect to Single Point Hydraulic Couplers (SPHC)**
| 1/4″ ISO 5675 “AG” Type |
JD 1023E | JD 2305 | JD 2720 | JD 4100 | JD 425 | |
|---|---|---|---|---|---|---|
| JD 1025/6R | JD 2320 | JD 2025R | JD 4110 | JD 445 | ||
| JD 2210 | JD 2520 | JD 2032R | JD 4115 | JD 455 | ||
| JD 3025E | JD2038R | MF GC1705 (pre 8/2017) |
All JD X-Series |
| 1/2″ ISO 5675 “AG” Type |
JD 3×20 | JD 4×00# | JD 3032/38E* | JD 4044/52/66M* | ||
|---|---|---|---|---|---|---|
| JD 4×20 | JD 3033/39/46R* | JD 4044/52/66R* | ||||
| JD 4×10 |
| 3/8″ ISO 5675 “AG” Type |
MF GC1705 (post 8/2017) |
MF GC1723 | ||||
|---|---|---|---|---|---|---|
| MF GC1710* | MF GC1725 | |||||
| MF GC1720* |
| 3/8″ ISO 7241 “B” Type |
JD 790*# | JD 4×00# | KUB L2501 (F) | KUB L3600 (F) | ||
|---|---|---|---|---|---|---|
| JD 990# | KUB L3301 (F) | KUB L3800 (F) | ||||
| KUB L3901 (F) |
| 3/8″ ISO 7241 “A” Type |
KIO CK25 | KIO NX5510 | NH TC40DA | KUB L4701 | LS 2025H (F) | BRSN 4520 (F) |
|---|---|---|---|---|---|---|
| KIO CK27 (F) | KIO LK3054 | MF 1526 | BRSN 6530 | |||
| KIO CK35 | KIO CX2510 | KIO CS2220 |
For the Power Beyond connections on the following machines:
| 1/2″ ISO 5675 “AG” Type |
JD 1023E | JD 2305* | JD 3×20 | JD 790*# | ||
|---|---|---|---|---|---|---|
| JD 1025/6R | JD 2025R(GEN2) | JD 4×20 | JD 990*# | |||
| JD 2210* | JD 2032R(GEN2) | JD 4×10* | JD 2038R |
| 3/8″ ISO 7241 “B” Type |
JD 2320 | JD 2025R(GEN1) | JD 4100 | |||
|---|---|---|---|---|---|---|
| JD 2520 | JD 2032R(GEN1) | JD 4110 | ||||
| JD 2720 | JD 4115 |
*=Not Verified Yet, Please Verify/Email Us
#=Depends on Serial Number, Please Verify/Email Us
**All information above is provided to the best of our ability to verify information.**

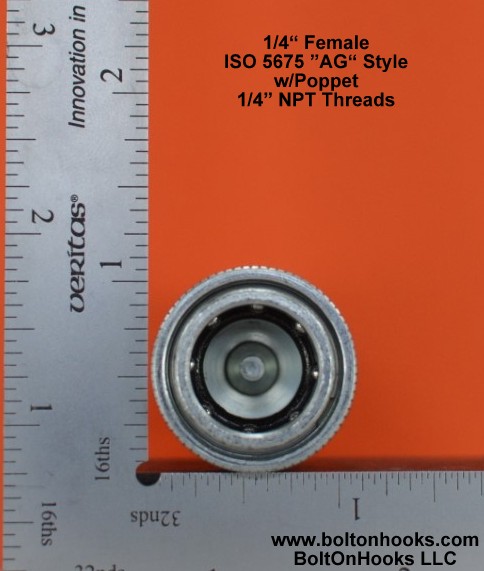

1/4″ Body Female ISO 5675 “AG” Type
1/4″ NPT Threads
Faster® NV Series
Made in Italy by Faster®
**Does not replace OEM couplers**

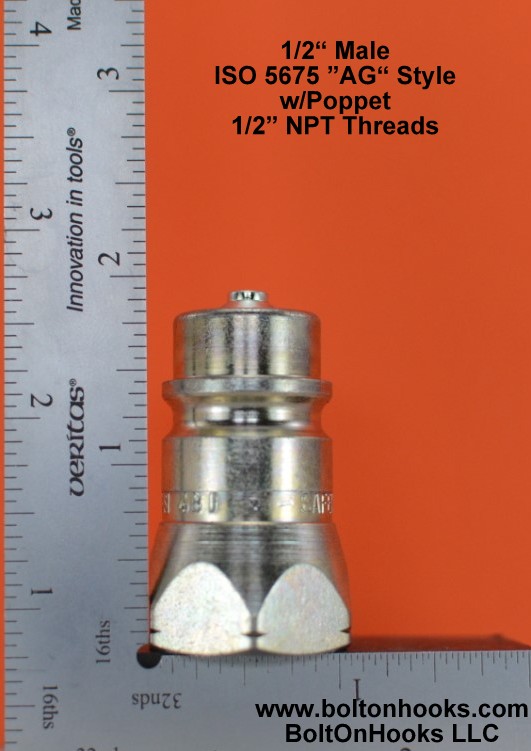

1/2″ Body Male ISO 5675 “AG” Type
1/2″ NPT Threads
Made in the USA
**Does not replace OEM couplers**

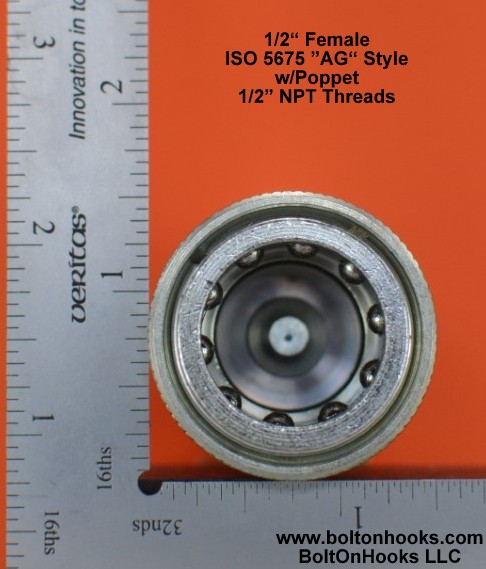

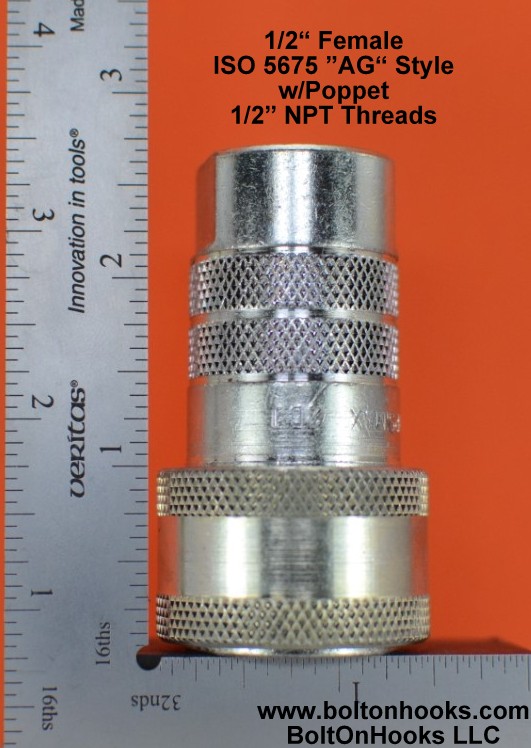

1/2″ Body Female ISO 5675 “AG” Type
1/2″ NPT Threads
Made in the USA
**Does not replace OEM couplers**

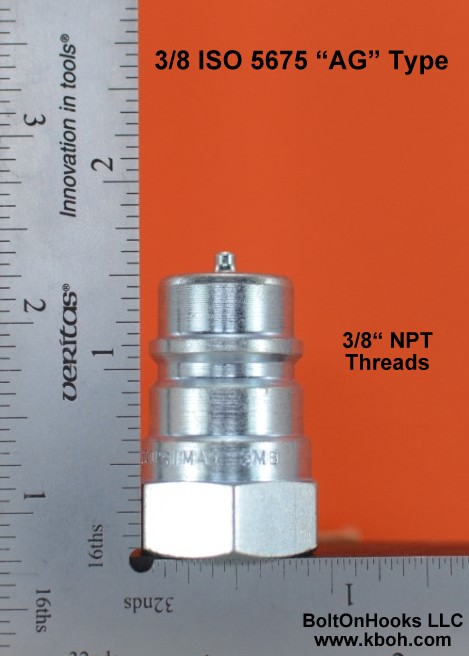

3/8″ Body Male ISO 5675 “AG” Type
3/8″ NPT Threads
Made in the USA
**Does not replace OEM couplers**

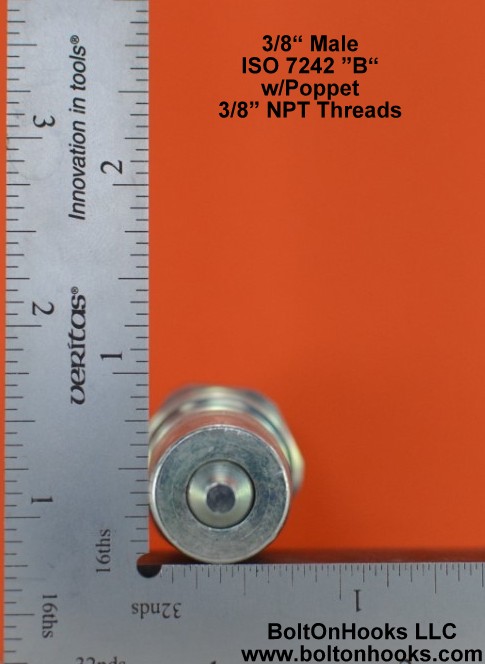

3/8″ Body Male ISO 7241 “B” Type
3/8″ NPT Threads
Made in Italy
**Does not replace OEM couplers**

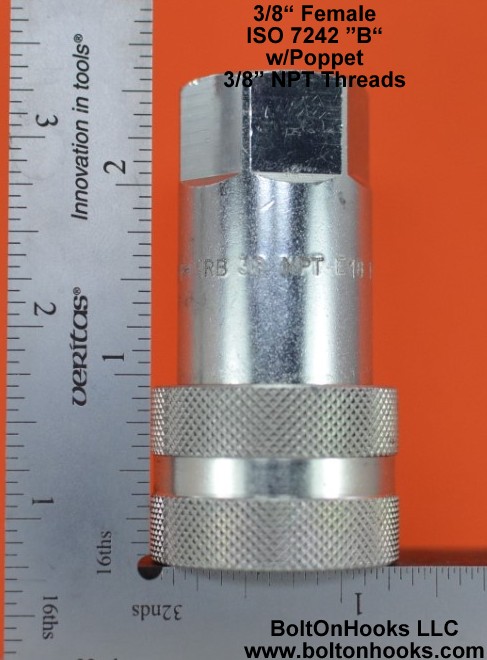

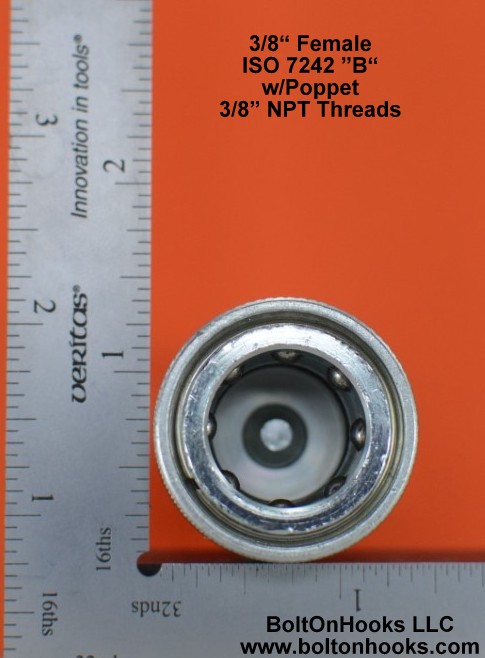

3/8″ Body Female ISO 7241 “B” Type
3/8″ NPT Threads
Made in Italy
**Does not replace OEM couplers**

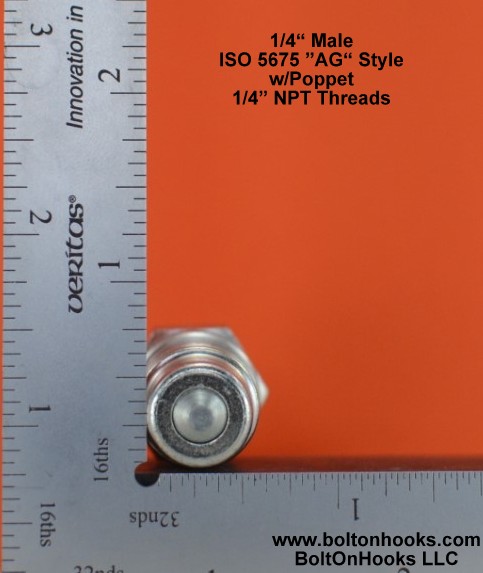

1/4″ Male ISO 5675 “AG” SAE/ORB
-06 (3/8″) ORB/SAE Female Threads
Made in Italy by Faster®
These are a direct replacement for John Deere® part number LVA22292
Includes one (1) free replacement O-Ring

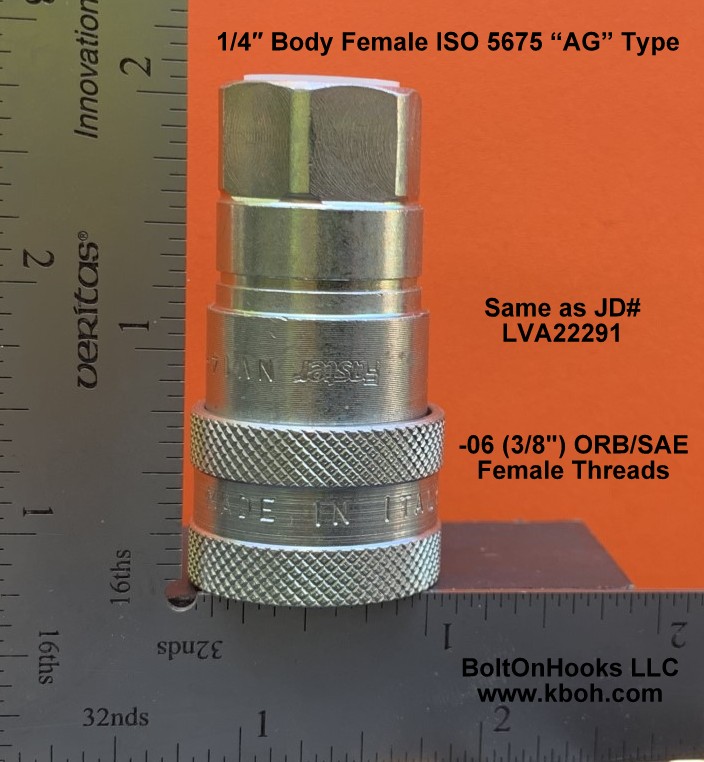

1/4″ Female ISO 5675 “AG” Type SAE/ORB
-06 (3/8″) ORB/SAE Female Threads
Made in Italy by Faster®
These are a direct replacement for John Deere® part numbers LVA22291 and LVA16843
Includes one (1) free replacement O-Ring
