Accessories for Imported Quick Hitches

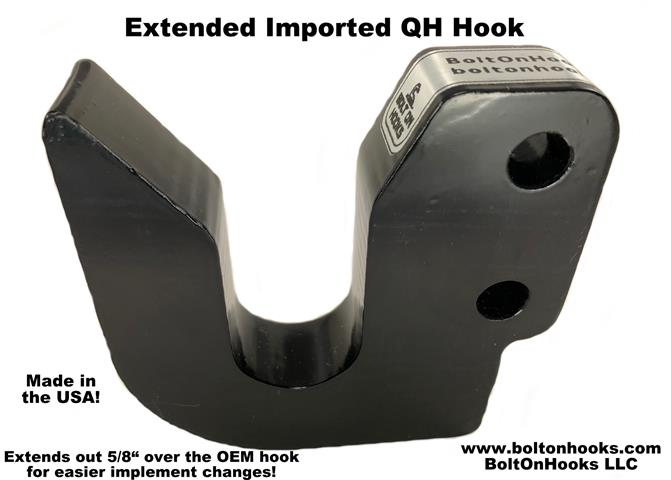

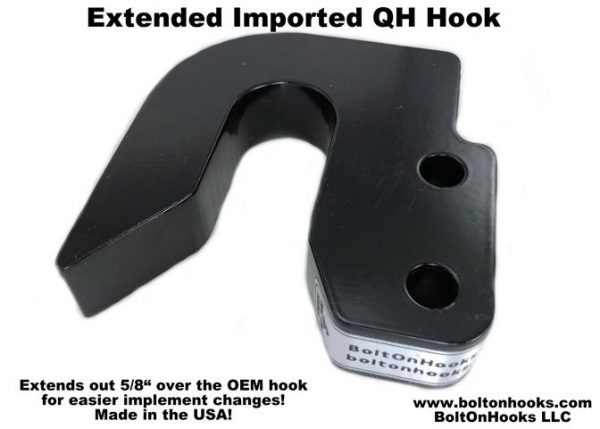

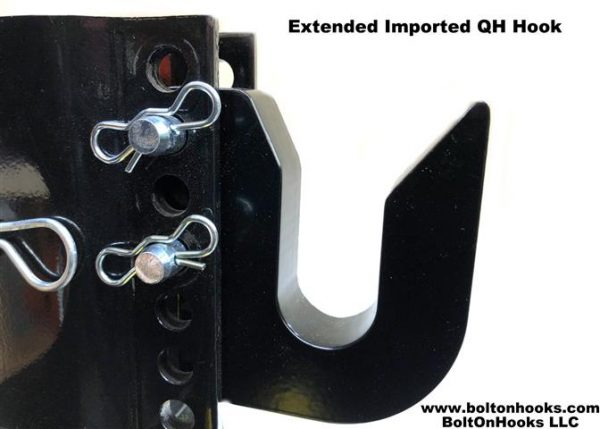

Extended Hook for Imported Quick Hitches

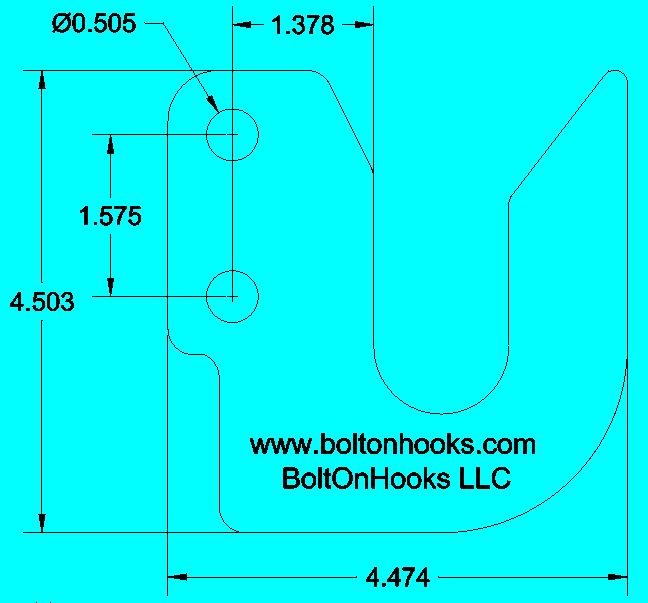

KBOH/BoltOnHooks LLC is proud to introduce the Quick Hitch Extended Hook for the Harbor Freight™ and other similar Imported Quick Hitches with the adjustable top hook. This new hook extends out 5/8″ over original hook (on most imported hitches)making implement changes faster, easier, and in some cases even possible. The hole spacing is 40mm (1.575″) center-to-center, the hole diameter is 12.7mm (.500″), and the hook is 1″ thick.

Specifications:

  • Extends out 5/8″ further than the original hook*
  • Black Powder Coat finish matches OEM color
  • 1″ thick steel (slightly thinner than the OEM hooks)
  • Installs in 5 minutes or less!
  • No modifications to Quick Hitch
  • *Hitches from various companies may already include this style hook, please verify yours with the drawing above
  • Made in the USA

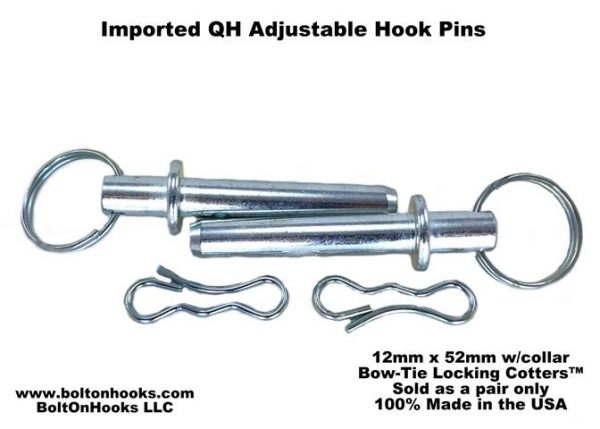

Adjustable Hook Pins for Imported Quick Hitches

KBOH/BoltOnHooks LLC is proud to introduce the Adjustable Hook Pins for Imported Quick Hitches. These pins will allow you to remove the existing bolts that hold the hook onto the quick hitch frame to facilitate easy height changes with no tools required. These pins also add in a bit of extra “slop” or “play” that will let the implement attach easier in most cases. 100% made in the USA of the finest materials available and zinc plated to resist rust and corrosion.

Specifications:

  • Zinc Plated to resist rust
  • Bowtie Cotters will not slip off accidentally
  • Replaces cumbersome bolts
  • Works with OEM hook or our extended hook
  • 52mm x 12mm (2.074″ x .472″)
  • 100% Made in the USA

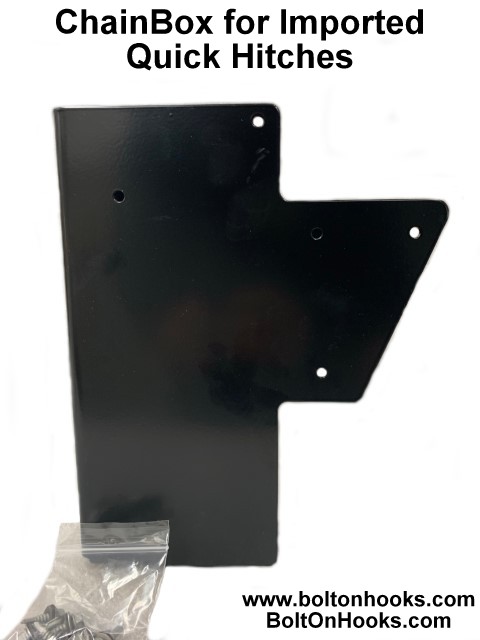

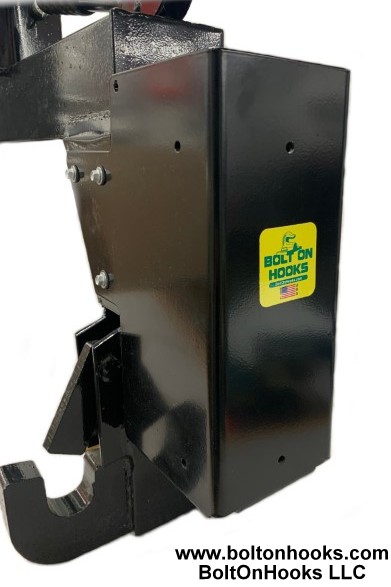

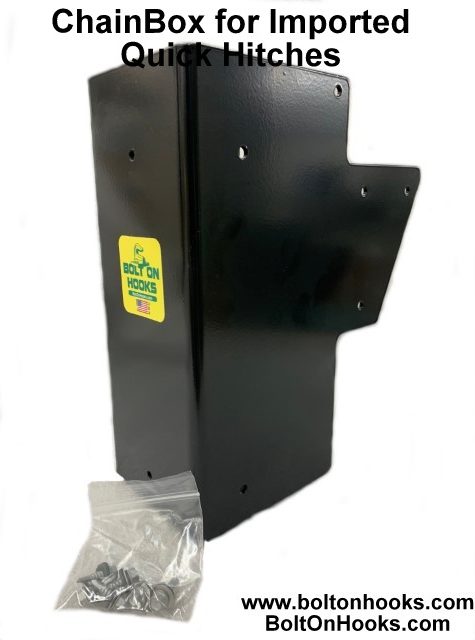

ChainBox for Imported Quick Hitches

KBOH/BoltOnHooks LLC is proud to introduce the ChainBox for Imported Quick Hitches**. The ChainBoxes will mount to the left or right side (or both!) of most CAT1 Imported Quick Hitches** (like from Harbor Freight, etc) to facilitate the storage of chains, straps, slings, tools, ect. Optional accessories can be added including a lid or up to three pairs* of Quick-Fist Clamps. Other accessories are planned for the future.

Each ChainBox includes mounting hardware and one piece of TRIM-LOC edge trim to protect the top edge from chains sliding across it.

Tools Needed to Install: You will need a drill or impact driver (preferred) with a 5/16″ socket driver bit, and a clamp capable of spreading at least 5″.

Each ChainBox measures approximately 4″ x 5″ x 12″ and will hold about 20 feet of 5/16″ chain or 14 feet of 3/8″ chain. An additional feature (not shown) are the slots in the bottom that allows water to drain out. The ChainBox is three-sided, and uses the iMatch itself as the 4th side to save materials and cost’s.

100% Made in the USA of the finest materials available, the ChainBoxes are laser cut from heavy gauge steel sheet and CNC bent for accuracy and strength. Finally they are powder coated semi-gloss black.

*Note: The rear mounted (towards the implement) Quick-Fist Clamps may interfere with some implements.

**Most Imported Quick Hitches are made in the same factory overseas, so they all look very similar.  These ChainBoxes are 4-3/16″ wide in the mounting area, and mount on the angled gussets these hitches have.

Will this ChainBox fit my QH? Download and print this simple template to see: ChainBox Template

New install video available courtesy of Ed from the My Cluttered Garage YouTube Channel: ChainBox for Imported Quick Hitches Install Video

ChainBox for Imported Quick Hitches

Includes mounting hardware and TRIM-LOC edge protector.

Made in the USA

Powder Coated Black

Each ChainBox measures approximately 4″ x 5″ x 12″ and will hold about 20 feet of 5/16″ chain or 14 feet of 3/8″ chain. An additional feature (not shown) are the slots in the bottom that allows water to drain out. Optional lids sold below.

Note: Ordering two or more ChainBoxes and other large items (Steps, ChainBoxes, Diverters, ect.) and picking the USPS shipping option may require extra shipping fees. Email for details.

$65.00
SKU: Imported QH-CB

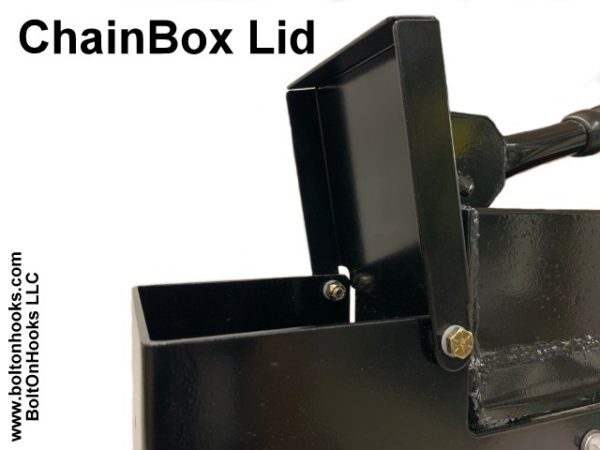

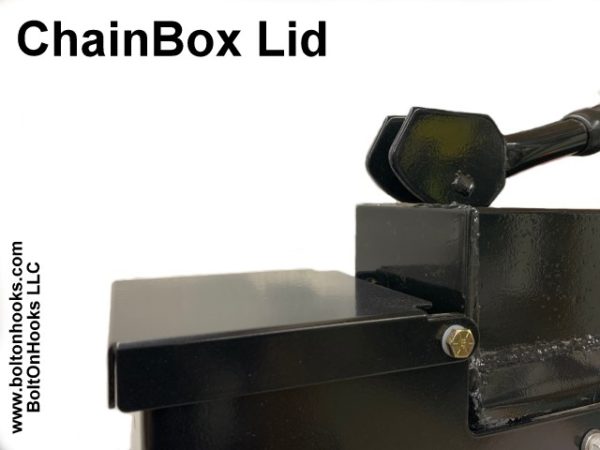

ChainBox Lid (Black)

Fits the ChainBox for Imported Quick Hitches, includes mounting hardware.

Powder Coated Black

Made in the USA

$20.00
SKU: Imported QH-CB Lid
ChainBox Quick-Fist Clamps

One Pair, includes special mounting hardware.

-Add up to three pairs per ChainBox
-Holds objects 1″ to 2.25″
-2 clamps support 50lbs
-Made in the USA

$12.50
SKU: QFC-CB

Quick Hitch Bushing Sets

KBOH/BoltOnHooks LLC is proud to introduce two Quick Hitch Bushing Sets. These are complete bushing sets that include the lower bushings as well as the ones for the top link. Works with virtually every Quick Hitch sold today, and sold as complete sets only.

Specifications for both sets:

  • Zinc Plated to resist rust
  • CAT 1 to CAT 3 as required for most Quick Hitches on the market today
  • Top Link Bushings are 2″ wide
  • Made in India
Quick Hitch Bushings

Sold as a complete set only, these “mushroom” or “stepped” style bushings are for implements with open ended lift arm pins.

  • Top Link Bushings are 2″ wide.
  • Comparable to JD part numbers BW15058 and LP19969

Replacement roll pins available

Click picture for more info

$30.00
SKU: QHB Set
Lift Arm Bushings

These Lift Arm Bushings are sold as a complete set only, they adapt the Category 1 lower lift arm and top link pins to Category 3 size that most quick hitches require. These are only used for implements that have  “captive” or “clevis” style lift arm pins.

  • Lift Arm Bushings are 1-3/4″ wide
  • Top Link Bushings are 2″ wide

If you have the open ended lift pins, you need the “mushroom” or “stepped” style bushings (Sold above)

Click picture for more info.

$14.00
SKU: LA Bushings
QH Spring Pins

These are replacement Spring / Roll Pins for the large “mushroom” or “stepped” style Quick Hitch Bushings sets.

  • 7/16″ x 1.5″ size
  • Two per pack
  • Should fit bushings from all OEM’s
  • Made in the USA
$3.00
SKU: QH-Spring-Pins
